Heart Rate Graph

The Oura App provides the ability to monitor your heart rate 24 hours a day. The daytime heart rate graph is available for:

Gen3 and Oura Ring 4 with active membership
iOS
Android

This feature is not available on Gen2 or older.

What Is the Heart Rate Graph?
24-hour Heart Rate Trendline
Live Heart Rate
Restorative Time
Stress
Daytime Heart Rate Measurement
Activity Heart Rate
How to Use the Heart Rate Graph
Things to Keep in Mind
More Information

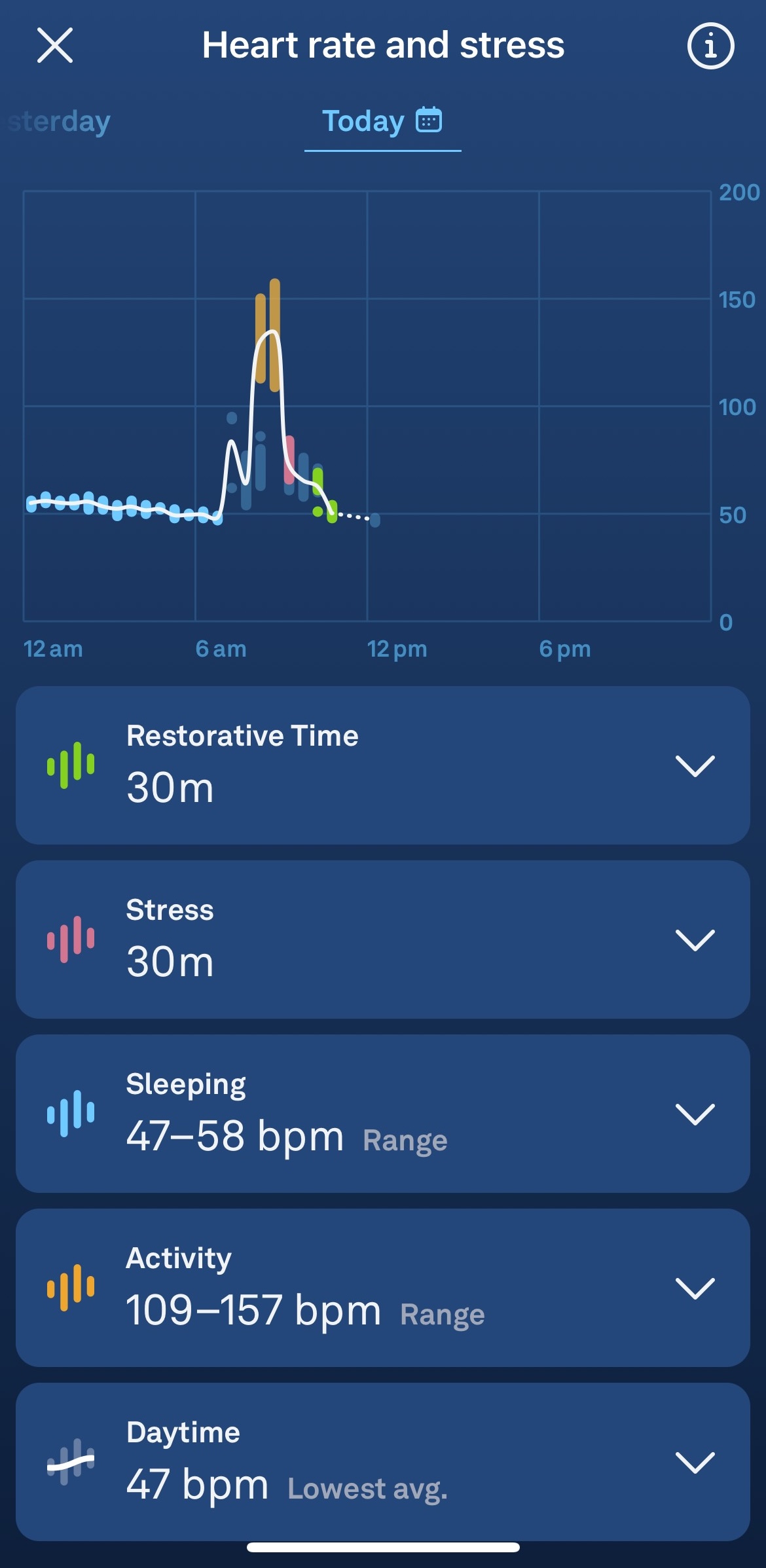

What Is the Heart Rate Graph?

The heart rate graph located on the home screen of the Oura App shows color-coded visualizations of your sleeping, daytime, stress, and activity heart rates, as well as periods of Restorative Time, all in the same chart.

The heart rate graph includes the following components:

24-hour Heart Rate Trendline

The 24-hour graph displays sleep resting heart rate in blue, Restorative Time in green, daytime stress in pink, and Activity Heart Rate in orange. The white trendline is the average of your heart rate readings throughout the 24-hour period.

Nighttime heart rate graphs are also available on the Sleep and Readiness screens of the Oura App.

Live Heart Rate

The latest reading of your pulse is displayed as beats per minute (BPM) beneath the heart rate graph, with a time indication of how long ago the last update was measured. Tapping the heart next to this number will update it with your current pulse measurement. Check out the Live Heart Rate article for more information.

Restorative Time

Restorative Time marks moments during the day when your body falls into a restful recovery state. Tracking these moments is a good way to measure your readiness. For more information on getting the most out of this feature, see our Restorative Time article.

Stress

Moments where your body has felt high levels of physiological stress are marked in pink on the heart rate graph. For more information, see the Daytime Stress article.

Daytime Heart Rate Measurement

Oura takes measurements of your daytime heart rate for one full minute, every five minutes, using the Oura Ring's green LEDs. To preserve battery and maximize accuracy, a daytime heart rate measurement is only taken under optimal conditions, which include low movement and balanced average body temperature.

Due to prioritizing these conditions, you may not receive an automatically updated heart rate for up to 30 minutes, but it can be manually updated at any time by using Live Heart Rate. Also note that "low movement" generally includes everyday actions, up to excessive motion associated with workouts.

Activity Heart Rate

The Activity Heart Rate feature is used to record your exercises. Heart rate measurements taken from physical activity are highlighted in orange on the graph.

How to Use the Heart Rate Graph

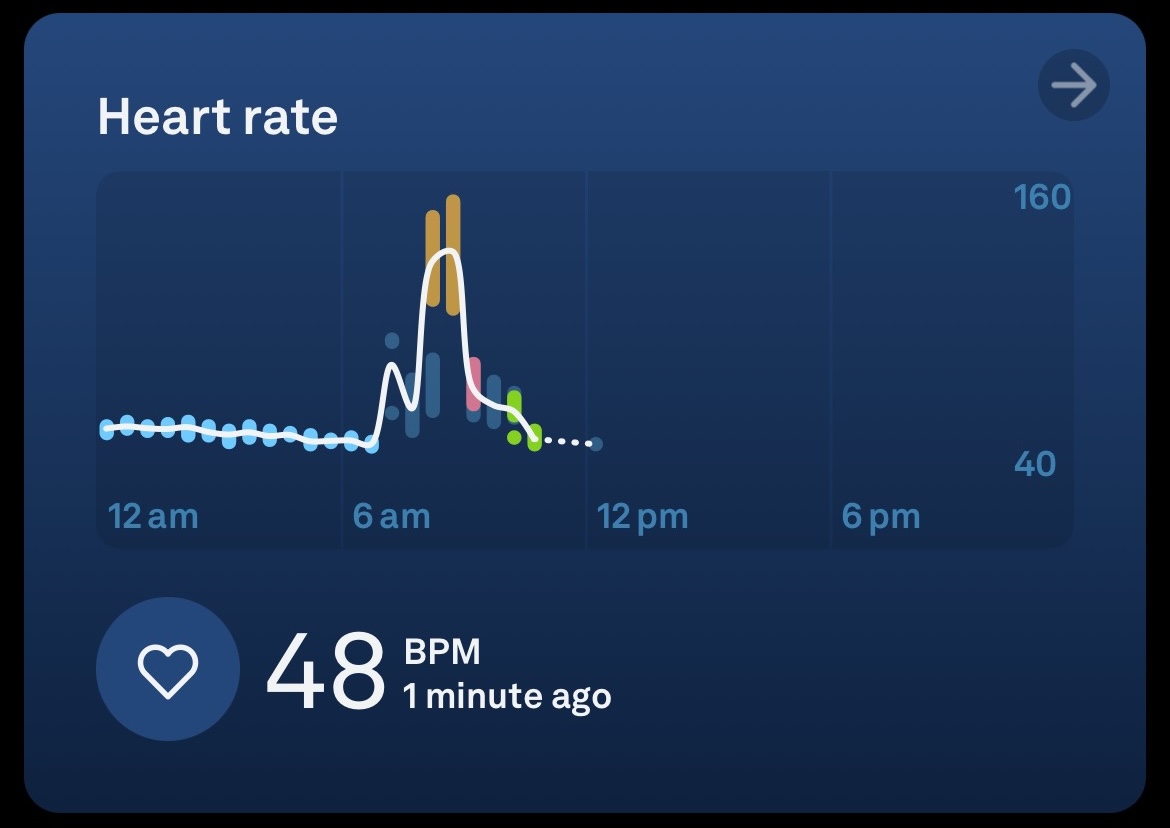

After your first full day of using the Oura Ring, the 24-hour heart rate graph displays as its own card on the Oura App's home screen (you may need to select " More" to display everything in the home screen). The graph shows heart rate beats per minute (BPM) for the current day (midnight to midnight). The most recent heart rate value (in BPM) is displayed beneath the graph, along with the Live Heart Rate button.

Each x-axis division of the graph represents a 30-minute time window, and every individual colored dot within those divisions is a five-minute heart rate range. Longer vertical bars indicate clusters of readings that overlap within the same 30 minutes.

The solid white trendline across the graph represents the average of all heart rate measurement. Dotted white lines indicate periods in which reliable data is not available. See the Troubleshooting Gaps in Heart Rate Graphs article for more information.

Tap anywhere on the heart rate graph for more detail. Press and hold or drag your finger on the graph to see a thin, vertical blue line. This line shows your exact heart rate range during that timeframe. Swipe right on the graph to view heart rate data from previous days.

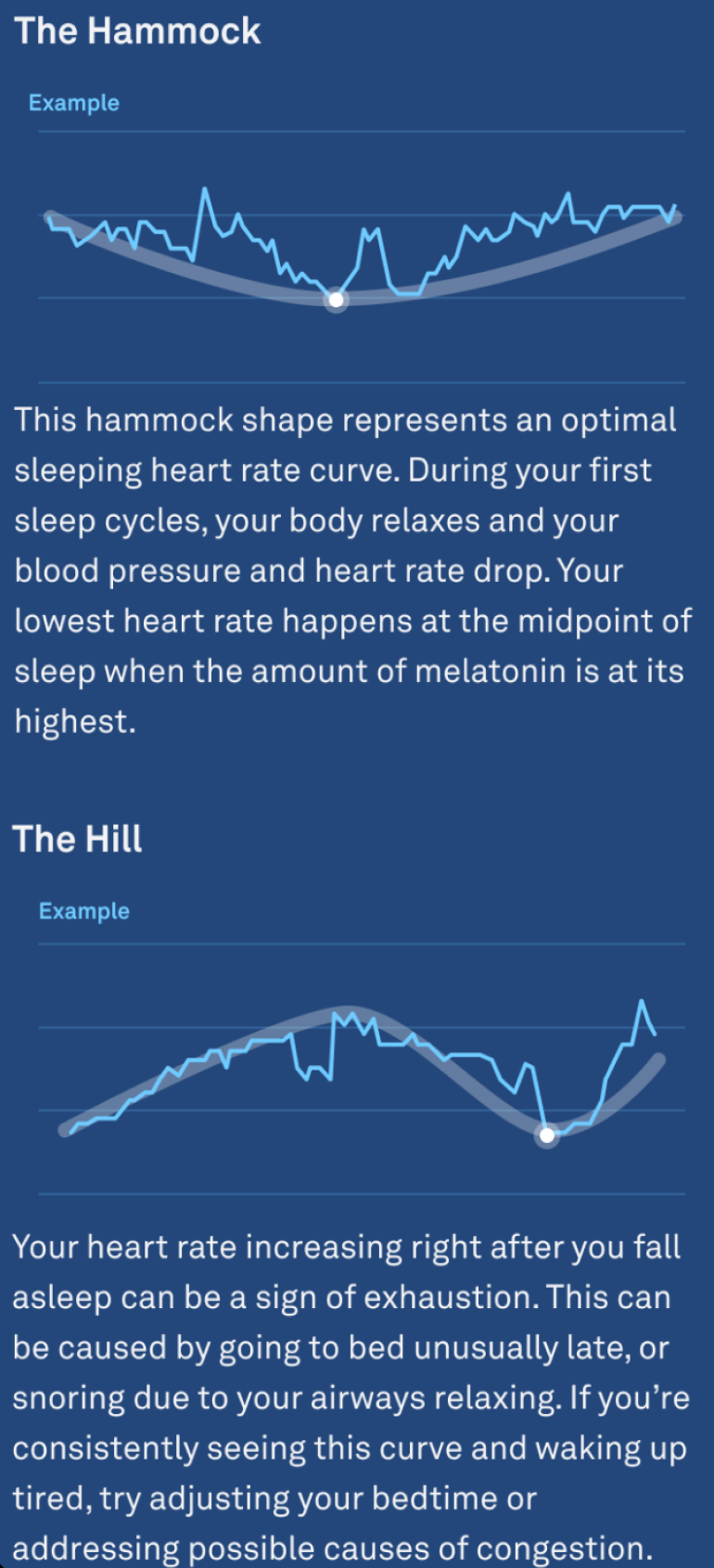

Tap on any of the five core metrics (Restorative Time, Stress, Sleeping, Activity, and Daytime) to see more data. Select "Learn more" beneath each one for further information, including how to interpret your heart rate curves.

Things to Keep in Mind

Daytime Heart Rate and Live Heart Rate are not intended to record workouts. For accurate measurement of your pulse during exercise, see the Activity Heart Rate feature
Excess movement or unusually low average body temperature may result in gaps in your heart rate graph data
Confirmed naps appear as sleep (in blue) on the 24-hour daytime graph
